Gazebo Rafter Bracket Gal – Square, Hexagonal, Octagonal, 4, 6 & 8 sided

$30.00$65.00 each

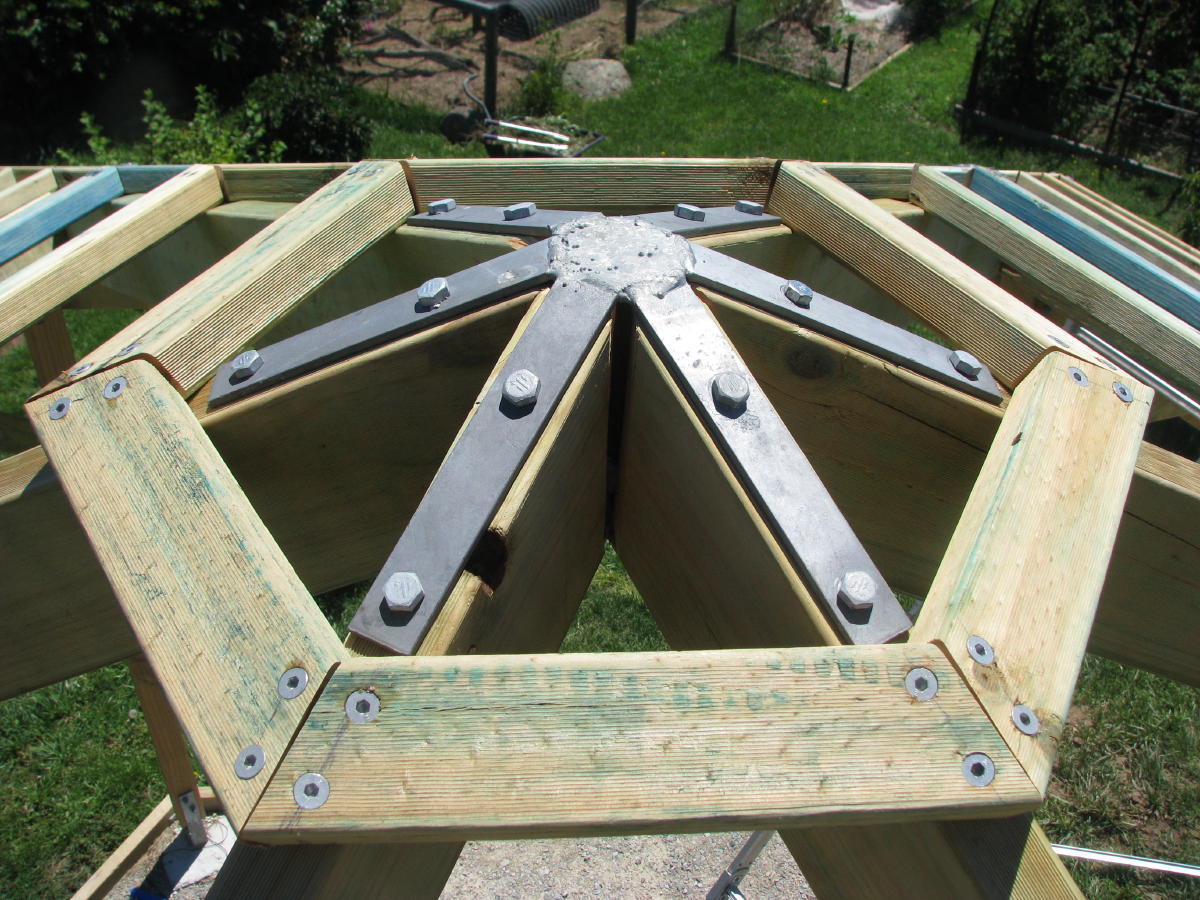

Some customers prefer to use one above and one below the rafters.

Clear selection
Buy 3 or more for a 10% discount

Product Description

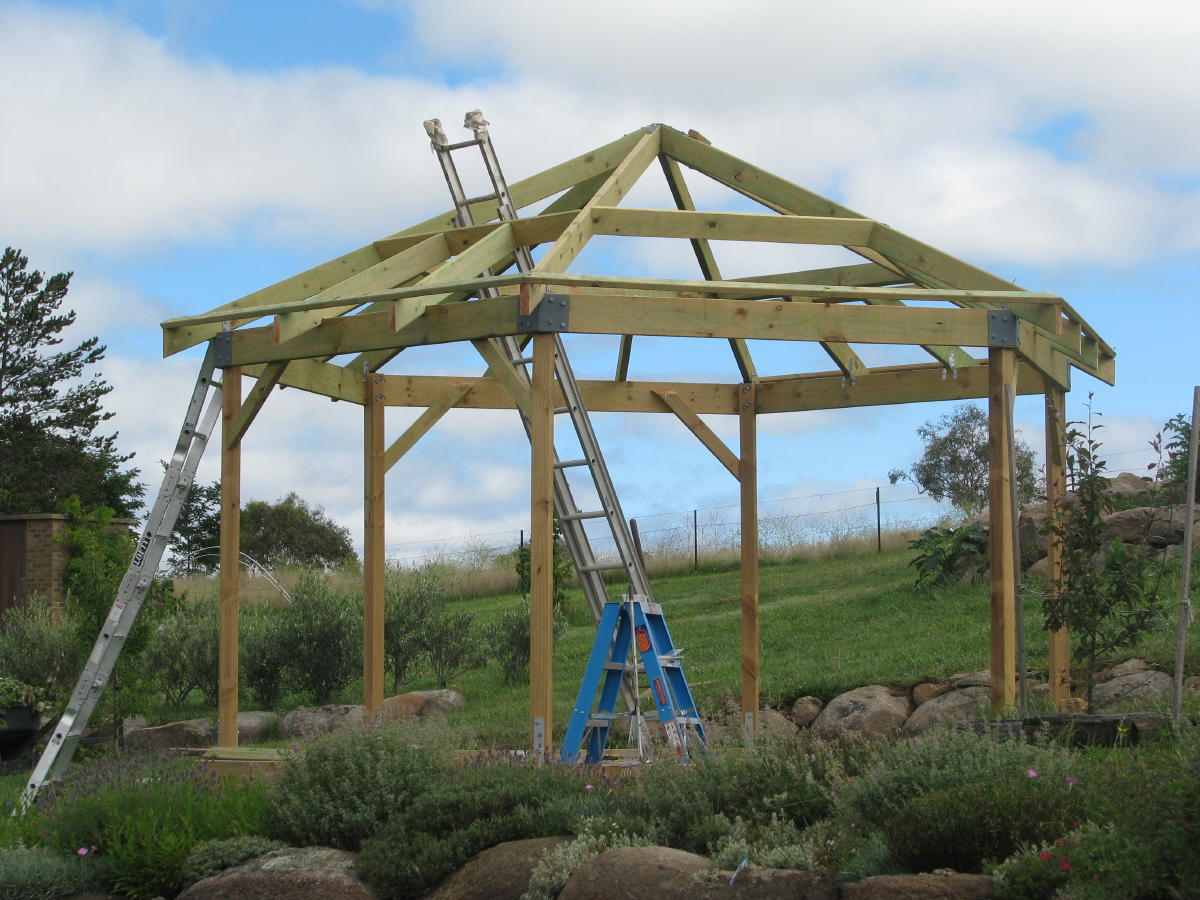

Need an easy way to setup your Gazebo Rafters?

Look no further!

Available to suit either 4, 6 or 8 rafter Gazebos.

Measurements:

Made from 40mm x 5mm Gal Flat
(Light duty is only 30mm wide)

All brackets are galvansied.

Approx Spoke angle = 25 degrees



Roof Angle vs. Rafter Angle

 Rafters  Rafter / Hip Angle  Roof Angle
4 25 deg 33.4 deg
6 25 deg 28.3 deg
8 25 deg 26.8 deg







Rafters can be cut to achieve variations in angle.

Need help designing your Gazebo? Check out this handy website: www.blocklayer.com/Gazebo.aspx

No Video Content

Additional Information

Weight kg
Dimensions N/A
